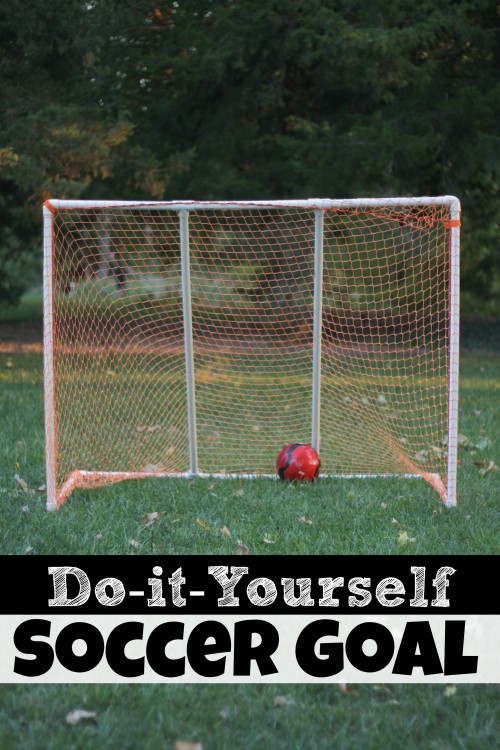

Make your very own soccer goal from PVC pipe for about half the price of a store-bought goal!  Big Brother just started his second season of soccer and we are all enjoying practicing together in the evenings (although Little Brother just wants to ride on Daddy’s shoulders).

I was amazed how simple this project actually was!  The hardest part was figuring out the net situation.  We’ll offer two options:  A commercial net (select the 6 x 4 x 3 size) you can purchase as well as a “Hillbilly” version that is every bit as effective, but just looks a little cooky!  :)  Although there isn’t a huge difference in price, the hillbilly version is slightly less expensive!  In total, we spent around $30-35 total on each of these goals.  The final size of the goal is 5 x 4 x 3.

DIY Soccer Goal PVC fencing 300x450 How to Make a PVC Soccer Goal

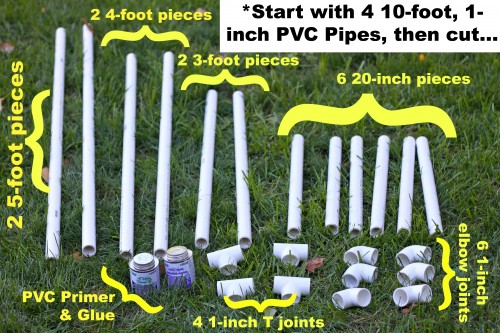

Here’s what you’ll need for the frame of the goal:  4 10-foot, 1-inch PVC Pipes.  You’ll also need this net (6 x 4 x 3 size) OR you can purchase some hex poultry netting at a home improvement store instead.



PVC Soccer Goal Pieces 500x333 How to Make a PVC Soccer Goal



IMG 4853 300x450 How to Make a PVC Soccer Goal

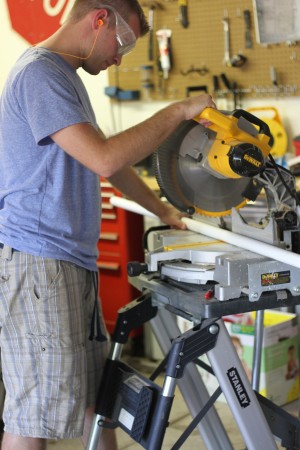

1.  Cut your four 10-foot pieces of PVC into (2) 5-foot sections, (2) 4-foot sections, (2) 3-foot sections, and (6) 20-inch sections.  You could even beg someone from the hardware/home improvement store to cut them for you if they aren’t busy.



IMG 4871 300x450 How to Make a PVC Soccer Goal

2.  Start assembling the goal.  Use the T-Joints to join (3) 20-inch pieces for the top and repeat for the bottom.  Add the 5-foot pieces to create the back frame.



IMG 4877 500x333 How to Make a PVC Soccer Goal

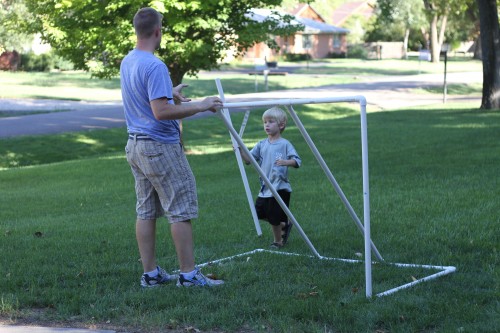

 3.  Use an elbow joint on each end of the bottom of the back frame to add the 3-foot sections.  Then add the 4-foot sections for the side posts.



IMG 4881 500x333 How to Make a PVC Soccer Goal



IMG 4885 300x450 How to Make a PVC Soccer Goal

4.  Once the goal is assembled, you can then take it apart one piece at time and add the glue, if you choose.  If you want to be able to disassemble the goal for any reason, you’ll want to skip this step.  It is sturdy enough without the glue, but the glue just adds an extra layer of strength!  :)



IMG 4895 500x333 How to Make a PVC Soccer Goal

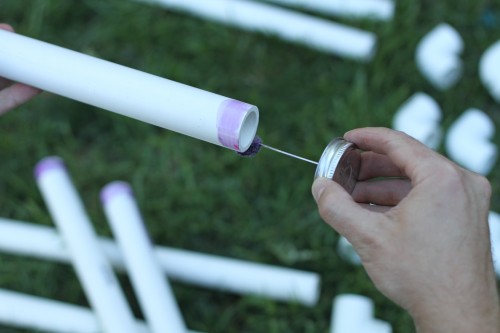

 The purple primer goes first:  Outside on the cut PVC pieces…



IMG 4897 300x450 How to Make a PVC Soccer Goal

 …and inside on the joints.



IMG 4903 500x333 How to Make a PVC Soccer Goal

 Now, you’re ready for the net!



IMG 4992 500x333 How to Make a PVC Soccer Goal

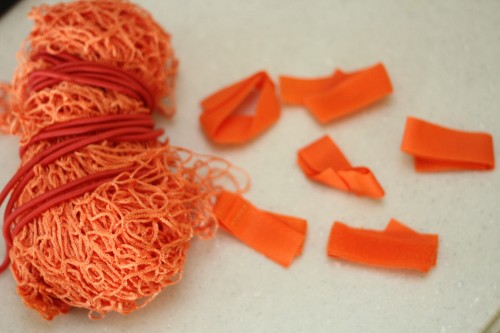

OPTION #1:  Purchase this net (the 6 x 4 x 3 size).  It’s awesome…it has bungee cords all around it and fits over the goal.

IMG 5001 500x333 How to Make a PVC Soccer Goal

IMG 5006 300x450 How to Make a PVC Soccer Goal

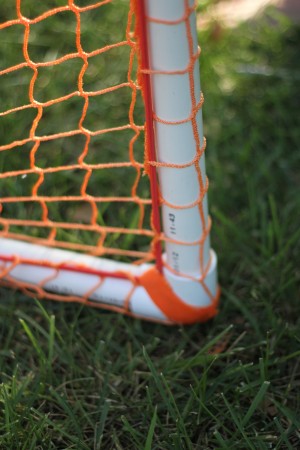

 You’ll use the Velcro straps (that come with it) to secure it on the goal.  If you want some extra strength, you can use some extra zip ties around the goal as well.

IMG 5029 300x450 How to Make a PVC Soccer Goal

IMG 5037 500x333 How to Make a PVC Soccer Goal

IMG 4905 300x450 How to Make a PVC Soccer Goal

 OPTION #2:  Plastic Hex Netting from the Home Improvement Store (in our case, Lowe’s).  About $12 for a roll!





IMG 4906 300x450 How to Make a PVC Soccer Goal

…and zip ties!  But make sure you get the value pack.  40 Zip ties didn’t do the job for us.  :)





IMG 4917 300x450 How to Make a PVC Soccer Goal

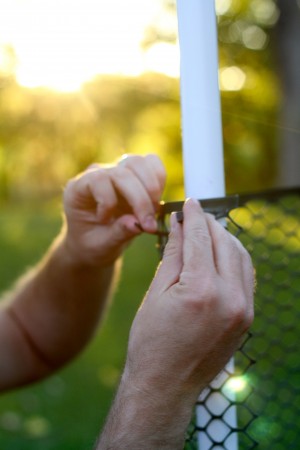

You’ll wrap the first layer around the base of the goal.

IMG 4923 500x333 How to Make a PVC Soccer Goal

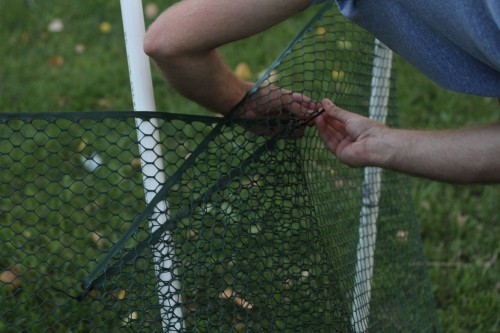

It will look rather box-like.  You’ll need to fold inward to rest against the rear poles and secure with more zip ties.

IMG 4939 300x450 How to Make a PVC Soccer Goal

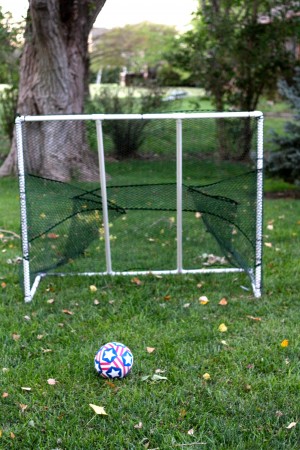

It looks a little quirky…

IMG 4942 500x333 How to Make a PVC Soccer Goal

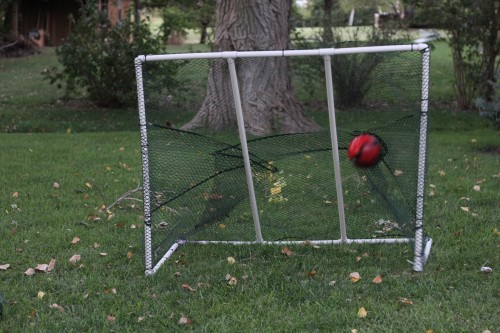

…but it definitely does the trick!

That’s it!  So simple!  Get ready for lots of outdoor family fun!
